Bred Bank File format ("BRED - Online Portal") has new limits placed on field sizes. We need to accommodate this in LinkSOFT so the file uploads successfully.

The change is explained below:L

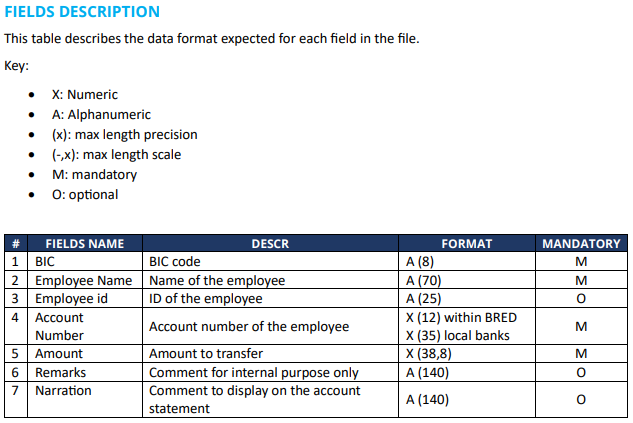

Figure 1 - 2023 Format

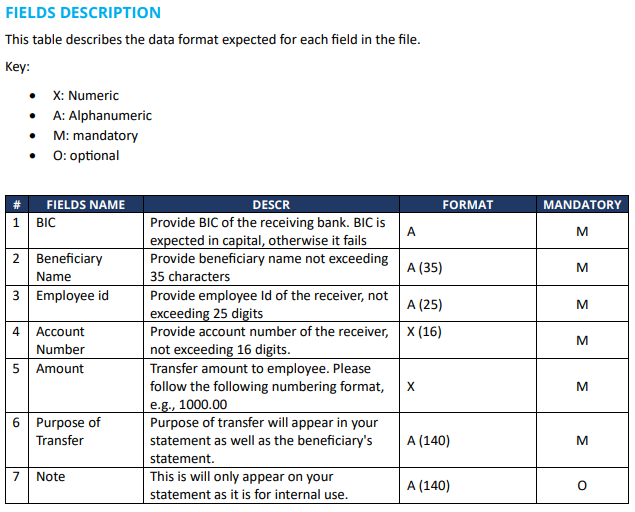

Figure 2 - 2025 Format


Note

1. Refer to the original development case L13007
2. New 2025 documentation attached

Hi Vineshwar, can you add the following to the case:

1. When is the updated version take effect
2. When will support for the outdated version discontinue
3. Is there an email confirmation from a bank representative that has asked us to make this change?  Can you paste the email in the case header, so we know it is official?

Once we have the above, I can make the change.

Hi Sanjay,

Response from Bred Bank
***********************************************************************************************

1. BIC - Required field. Provide BIC code of the receiving bank. BIC code is expected in capital, otherwise it fails. (LinkSOFT: Menu: "Company Administration ~> Bank". Detail: "Number Mapping". "Mapping Number" field.)
2. Employee Name - Required field. Provide employee name not exceeding 35 characters. (LinkSOFT: Trim Left to 35 Characters)
3. Employee Id - Required field. Provide employee Id of the receiver, not exceeding 25 digits. (LinkSOFT: EmployeeCode)
4. Account Number - Required field. Provide account number of the receiver, not exceeding 16 digits. (LinkSOFT: Menu: Employee Profile ~> Employee Pay Setup". Detail: Direct Debit. "Account No" field.)
5. Amount - Required field. Transfer amount to employee. Please follow the following numbering format, e.g., 1000.00
6. Remarks - Optional field. Remarks will appear in your account. The length of Remarks should not exceed 140 characters.
7. Narration - Optional field. This is for your own information. The length of Naration should not exceed 140 characters.

1. The change will be available in version: 15.90.250922

2. The following changes were made (Include Database object names, Program classes, and any other relevant information):

1. Changed "BRED - Online Portal" file output to limit the output size as shown on the case header
2. All other fields remain unchanged

3. Affected Areas:

1. Bank File - BRED BANK

4. The issue was caused by:

1. Change in file format, specifically, Length of fields

5. Other Relevant Notes:
6. Next Step (Review and System Test (Developer) -> UAT (Quality) -> Documentation): UAT

1. Refer to "Figure 2 - 2025 Format" for Field Names;
   1. No. 2 - "Beneficiary Name"
   2. No. 6 - "Purpose of Transfer"
   3. No. 7 - "Note"
2. Mandatory
   1. No. 3 - "Employee ID"
   2. No. 6 - "Purpose of Transfer". Fill this column with the word "Salary"
3. Details are in the attachments; "BBF-Payroll & Local Batch v10.0.pdf" and "Readme for Payroll.txt"

1. The change will be available in version: 15.90.250923

2. The following changes were made (Include Database object names, Program classes, and any other relevant information):

1. Changed "BRED - Online Portal" file output headers as requested in comment 6
2. Added "Purpose of transfer: to Payroll for "Company Name" Pay no: XXX - see comment 7

3. Affected Areas:

1. Bank File - BRED BANK

4. The issue was caused by:

1. Change in file format, specifically, Length of fields

5. Other Relevant Notes:
6. Next Step (Review and System Test (Developer) -> UAT (Quality) -> Documentation): UAT

*** Teams Messages ***

Sitla: Upload to BRED bank is failing. We have a field as "Beneficiary Name" / File requires "Employee Name". See figure 1 below:
Figure 1 - Upload Error

Sanjay: Hi Sitla, The document is saying the opposite. See comment 2.
I don't understand why this change was requested when it clearly is not implemented by the bank. This will cause instability in LinkSOFT. Can you action this asap and let me know whet is required?

Hi Sanjay,

I have done the testing with the new file format, and the following is to be noted

1. File Format from Prior LinkSOFT version




2. File output from the current version


I was able to successfully generate a file from Edge Demo - Pay No. 498 and upload it to the BRED Bank portal by renaming the following fields:

1. Beneficiary Name to Employee Name
2. Adding the word(optional) with Field Name "Notes" to "Notes (optional)"

This should be okay to upload the file.

In the Bred Bank portal, you can see the fields as below.

Let me know so I can test the upload again.
Sitla.

***Teams Discussion ***

The attached bank specifications is incorrect. Please Ignore.

The column header needs to be as follows:

BIC, Employee Name, Employee Id, Account Number, Amount, Purpose of Transfer, Note (optional)

1. The change will be available in version: 15.90.250925

2. The following changes were made (Include Database object names, Program classes, and any other relevant information):

1. Changes requested in Comment 13 has been completed.

3. Affected Areas:

1. Bred Bank Online file

4. The issue was caused by:

1. Change request

5. Other Relevant Notes:
6. Next Step (Review and System Test (Developer) -> UAT (Quality) -> Documentation): UAT

Hi Sanjay,

File tested in Bred Portal success

Closig case.
